PRODUCTS FEATURES

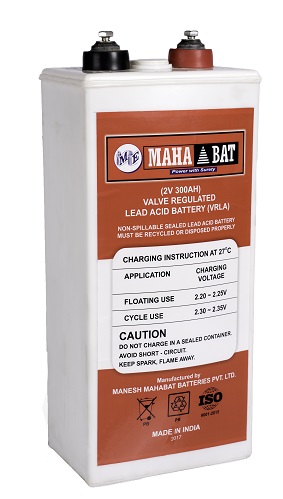

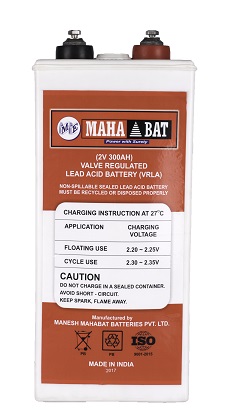

The PNGB series has a completely sealed gas-recombining structure which has a relatively long life.
It is available in various capacities and dimensions.
This series is fit for both floating & deep cycle service,such as UPS , telecommunication & lighting systems.
They are usable in a wide temperature range , from-20 °C to 50 °C and can be used in various services including high-rate discharge.

Battery Type	Nominal Voltage	Nominal Capacity (Ah)				Dimentions (mm)				Weight (±5%)
		10HR	5HR	3HR	1HR	Dimentions (mm)				Weight (±5%)
		Final V.P.C.(1.80)	Final V.P.C.(1.70)	Final V.P.C.(1.65)	Final V.P.C.(1.60)	Length	Width	Height	T.Height	(APPROX.)
PNGB 21000	2	100	91	83	66	106	170	326	364	8.0
PNGB 21200	2	120	109	100	79	106	170	326	364	9.0
PNGB 21500	2	150	137	125	99	106	170	326	364	10.0
PNGB 22000	2	200	182	166	132	106	170	326	364	12.0
PNGB 22500	2	250	228	208	165	195	170	326	364	15.5
PNGB 23000	2	300	273	249	198	195	170	326	364	18.3
PNGB 24000	2	400	364	332	264	195	170	326	364	22.7
PNGB 25000	2	500	455	415	330	289	171	326	364	29.0
PNGB 26000	2	600	546	498	396	289	171	326	364	33.5
PNGB 27000	2	700	637	581	462	382	171	326	364	40.5
PNGB 28000	2	800	728	664	528	382	171	326	364	45.0
PNGB 29000	2	900	819	747	594	471	171	326	364	53.0
PNGB 210000	2	1000	910	830	660	471	171	326	364	58.0
PNGB 212000	2	1200	1092	996	792	471	171	326	364	67.0
PNGB 214000	2	1400	1274	1162	924	472	333	340	372	87.0
PNGB 216000	2	1600	1456	1328	1056	472	333	340	372	96.0
PNGB 218000	2	1800	1638	1494	1188	472	333	340	372	105
PNGB 220000	2	2000	1820	1660	1320	472	333	340	372	113
